Lugar de origen:
Porcelana
Nombre de la marca:
Customization
Certificación:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Número de modelo:
Conjunto de cable micro coaxial con conector 20453-040T-01

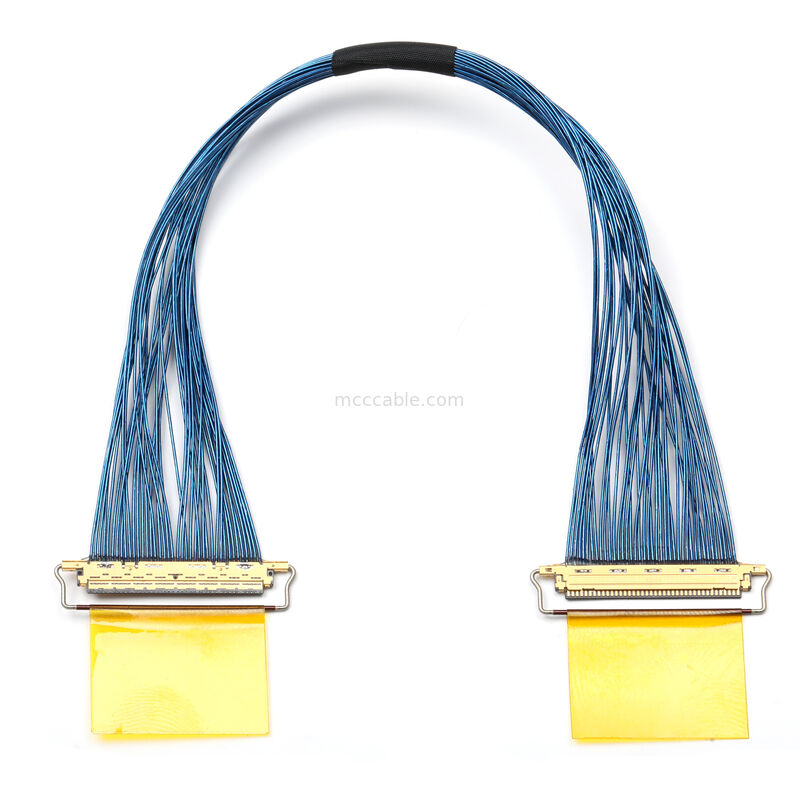

Micro Coaxial Cable Assembly with 20453-040T-01 Connector
– Custom OEM High-Speed Interconnect
Micro Coaxial Cable Assembly with 20453-040T-01 Connector:
This Micro Coaxial Cable Assembly with 20453-040T-01 Connector is a custom OEM
interconnect solution designed for compact electronic systems requiring stable
high-speed signal transmission and reliable mechanical performance.

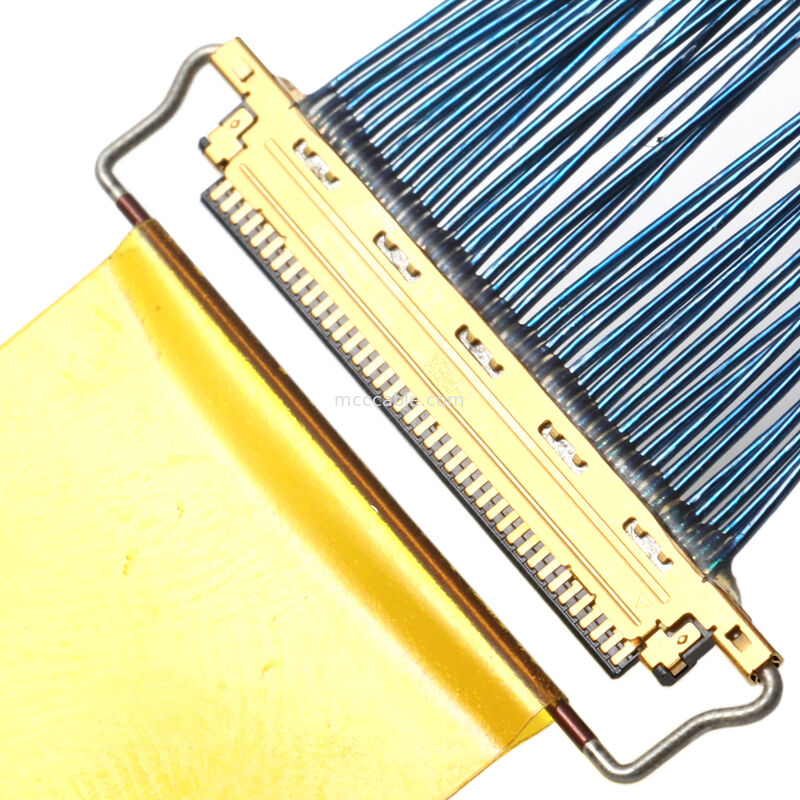

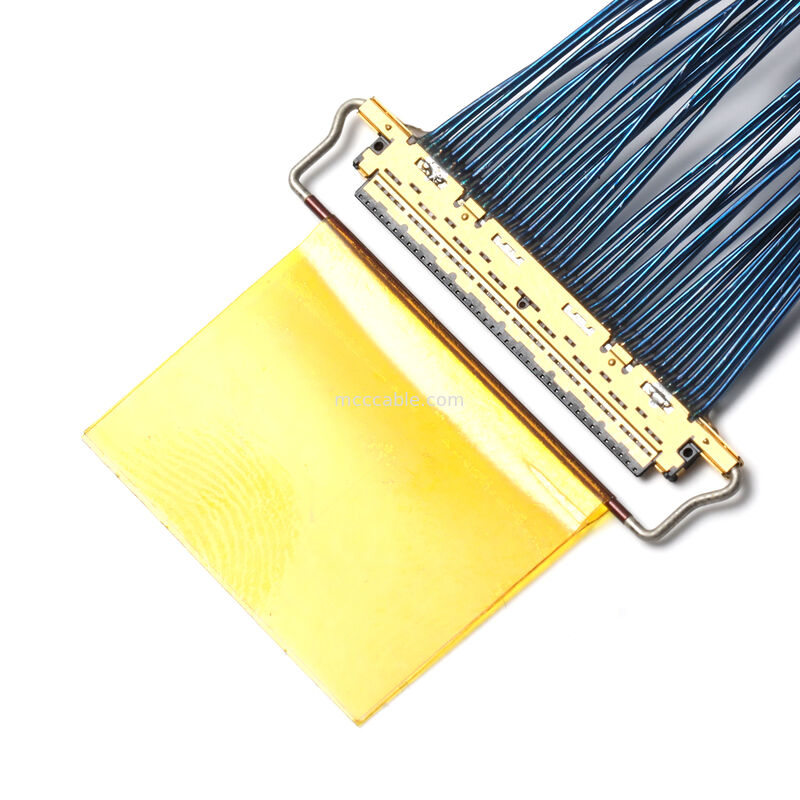

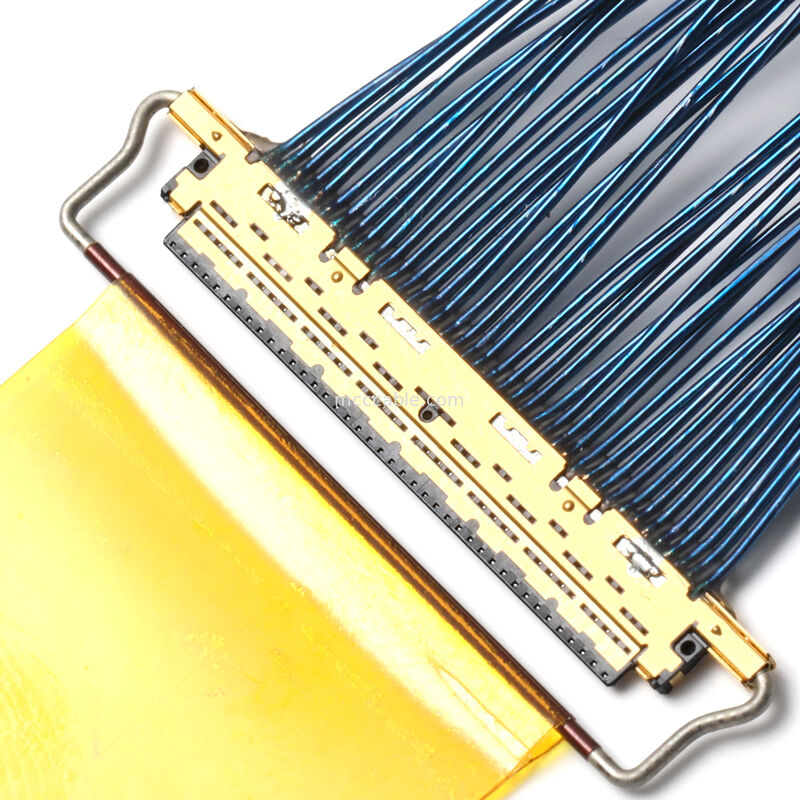

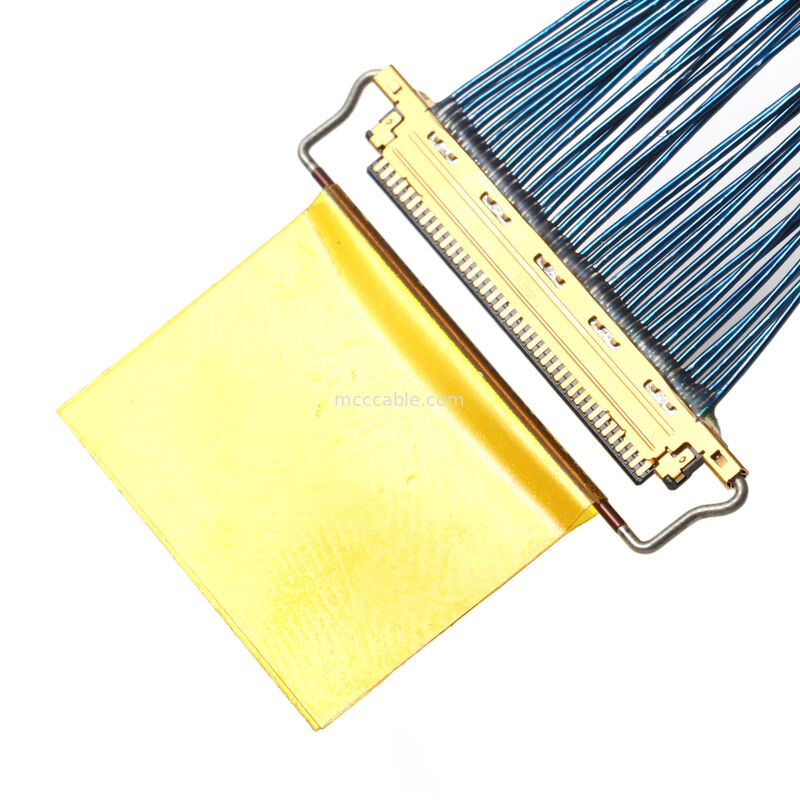

The assembly utilizes ultra-fine micro coaxial wires terminated with a 20453-040T-01
fine-pitch board-level connector, combined with insulation film, UV adhesive, and
strain-relief reinforcement.
It is optimized for space-constrained applications where signal integrity and durability
are critical.
All assemblies are custom-built according to customer-defined electrical and mechanical
requirements.
Key Features Of Micro Coaxial Cable Assembly with 20453-040T-01 Connector:
Micro Coaxial Wire Structure
Individual coaxial conductors reduce crosstalk and EMI, supporting clean high-speed
signal transmission.
20453-040T-01 Fine-Pitch Connector Interface
Compact board-level connector design suitable for high-density electronic assemblies.
Flexible Cable Bundle Design
Multi-core micro coax bundle supports controlled bending and routing.
Reinforced Termination Area
Insulation film, UV adhesive, and tape reinforcement improve strain relief and long-term
reliability.
Custom OEM Manufacturing
Cable length, pinout, connector orientation, and reinforcement method are fully customizable.
Typical Applications Of Micro Coaxial Cable Assembly with 20453-040T-01 Connector:
Embedded display and imaging systems
Compact camera and sensor modules
Industrial electronics and control units
High-density board-to-board interconnects
Custom OEM electronic assemblies
Technical Specifications Of Micro Coaxial Cable Assembly with 20453-040T-01 Connector:
| Parameter | Description |
|---|---|
| Product Type | Micro Coaxial Cable Assembly |
| Connector Model | 20453-040T-01 |
| Connector Type | Fine-pitch board-level plug connector |
| Connector Pitch | 0.5 mm class |
| Wire Type | Micro Coaxial Wire (e.g. UL1354 class) |
| Number of Conductors | Custom (example: 40 cores) |
| Cable Length | Custom (example: 150 mm ±10 mm) |
| Signal Capability | High-speed, low-noise transmission |
| Shielding | Individual coax shielding |
| Mechanical Protection | Insulation film + UV adhesive + tape |
| Electrical Testing | 100% open / short / continuity test |
| Hi-Pot Test | AC 200 V |
| Insulation Resistance | ≥20 MΩ (DC 200 V) |
| Contact Resistance | ≤5 Ω |
| Compliance | RoHS compliant |
| Manufacturing Mode | Custom OEM design & production |
Customization Options Of Micro Coaxial Cable Assembly with 20453-040T-01 Connector:
Cable length and routing layout
Number of micro coaxial lines
Connector orientation and mating structure
Pin assignment and signal grouping
Reinforcement and insulation materials
Labeling, serialization, and packaging
Engineering support is available from design validation to volume production.
