Conjunto de cable híbrido de servomotor M23 de 8 pines
M23 8-Pin Servo Motor Hybrid Cable Assembly
– Custom OEM Industrial Interconnect
M23 8-Pin Servo Motor Hybrid Cable Assembly:

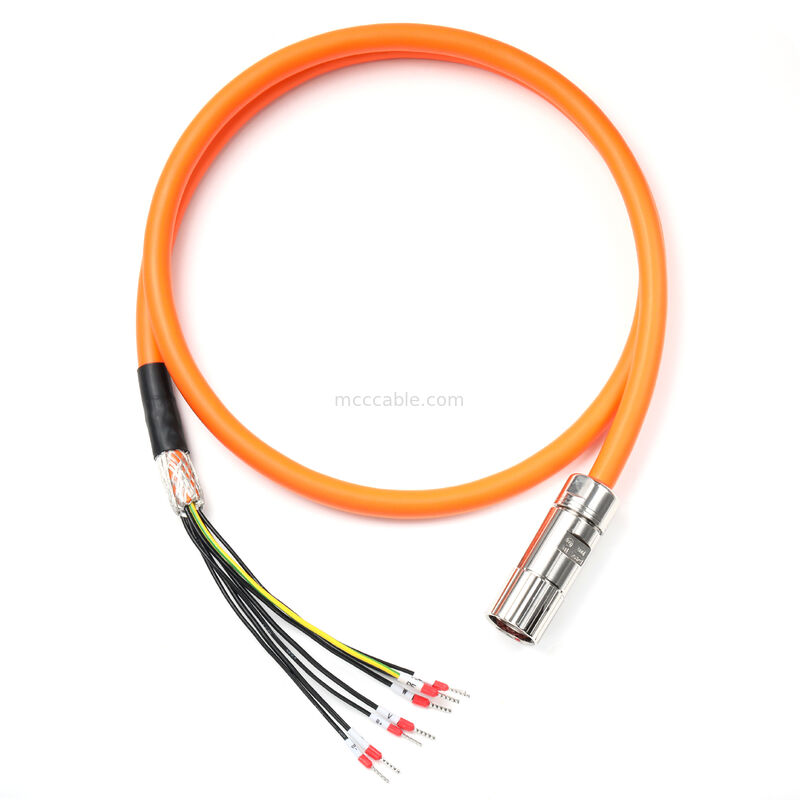

This M23 8-Pin Servo Motor Hybrid Cable Assembly is a custom OEM solution designed
for industrial servo motor systems requiring integrated power, signal, braking, and thermal
feedback transmission in a single cable.

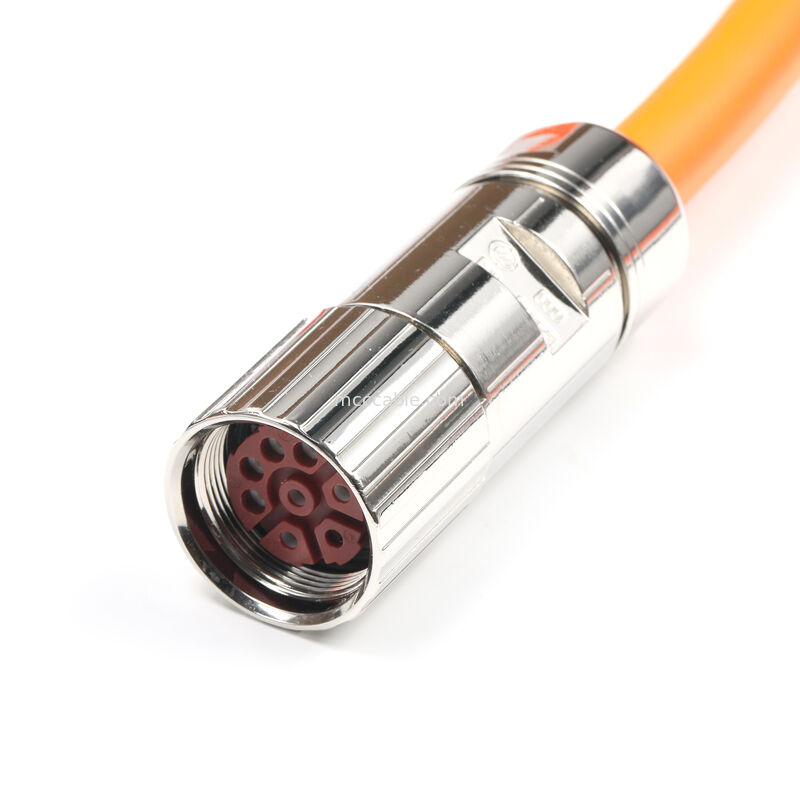

The assembly features an M23 8-pin circular connector (female) with metal housing and
threaded coupling, combined with a shielded multi-core servo motor cable.

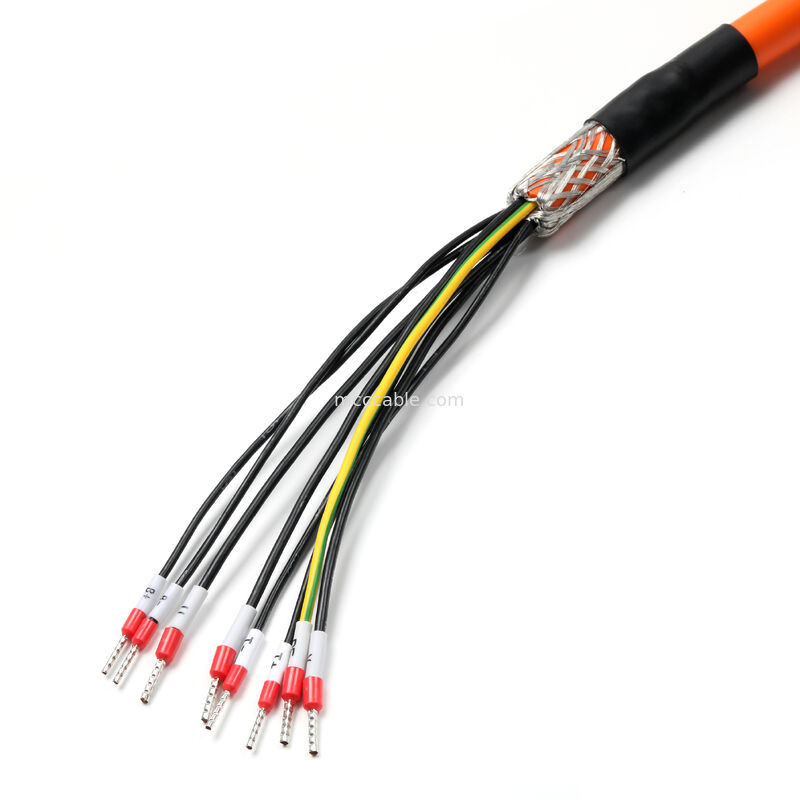

On the open end, individual conductors are clearly identified and terminated, allowing
flexible integration into drive controllers or terminal blocks.
Cable length, conductor configuration, and termination style are fully customizable based
on customer motor specifications and system requirements.
M23 8-Pin Servo Motor Hybrid Cable Assembly – Key Features:
M23 8-Pin circular connector interface
Secure threaded coupling for industrial vibration environments
Hybrid power & signal design

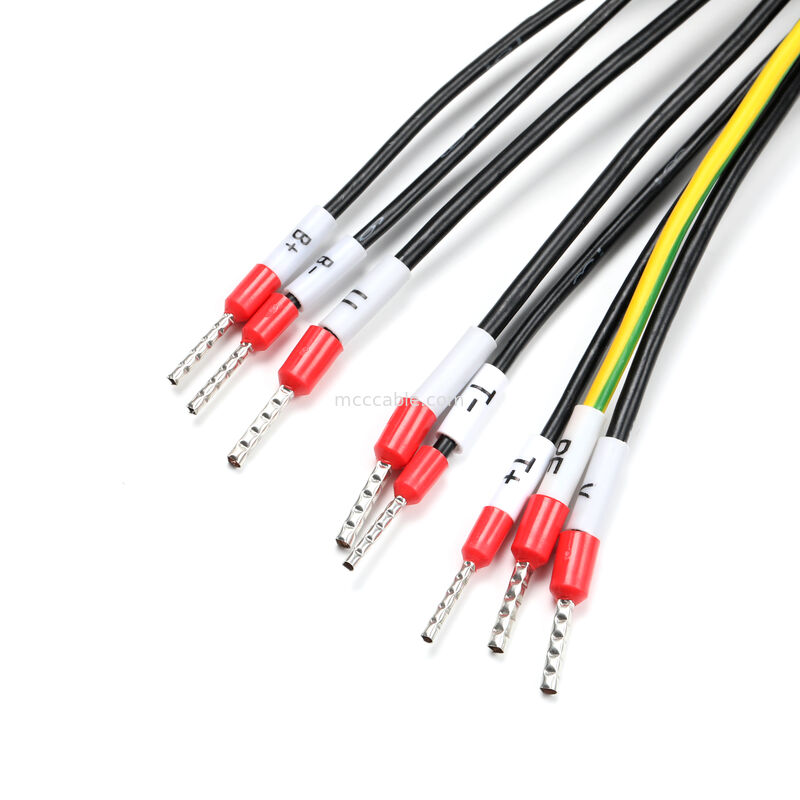

Supports motor phases, brake, thermal sensor, and protective earth

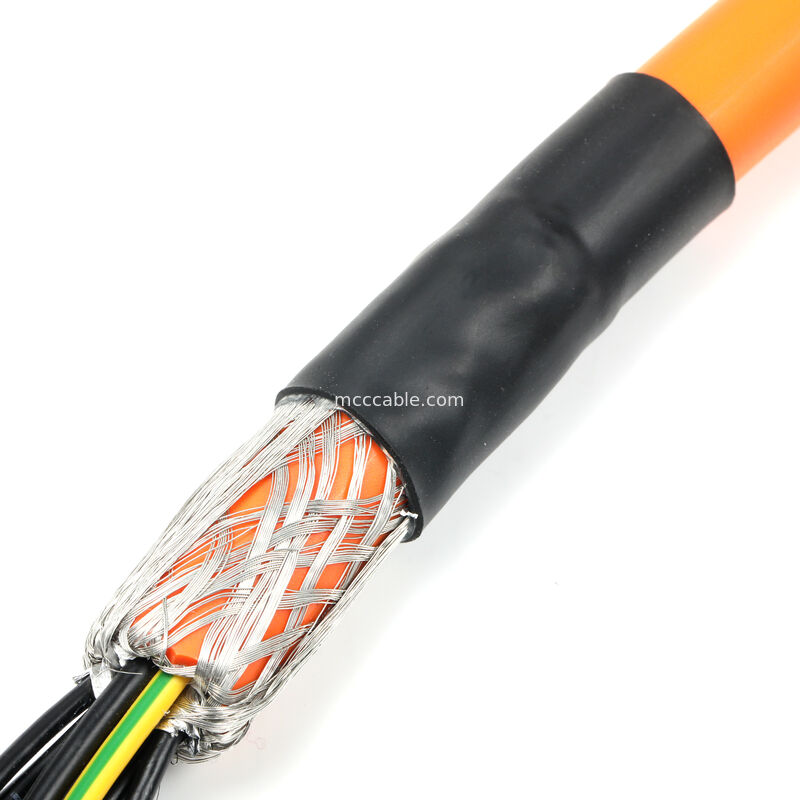

Overall braided shielding with shell grounding
Reduces EMI and ensures stable motor operation
Industrial servo cable construction
Orange outer jacket for clear motor cable identification
Labeled individual conductors
Simplifies installation, maintenance, and troubleshooting
Custom OEM manufacturing
Built strictly according to drawing and motor interface definition
M23 8-Pin Servo Motor Hybrid Cable Assembly – Typical Applications:
Industrial servo motors
Automation and motion control systems
CNC and robotic equipment
Packaging and production machinery
OEM motor and drive assemblies
M23 8-Pin Servo Motor Hybrid Cable Assembly – Technical Specifications:
| Parameter | Description |
|---|---|
| Product Type | Servo Motor Hybrid Cable Assembly |
| Connector Type | M23 Circular Connector |
| Connector Gender | Female |
| Number of Pins | 8 |
| Connector Housing | Metal, threaded coupling |
| Cable Structure | Multi-core shielded servo cable |
| Shielding | Overall braided shield |
| Grounding | Shield connected to connector shell |
| Outer Jacket Color | Orange |
| Termination (Motor Side) | M23 connector |
| Termination (Controller Side) | Open wire, labeled |
| Cable Length | Custom (per drawing) |
| Manufacturing Mode | Custom OEM / ODM |
| Compliance | RoHS compliant |
M23 8-Pin Servo Motor Hybrid Cable Assembly – Pin Assignment:
| M23 Pin | Signal Definition | Identification | Wire Color |
|---|---|---|---|
| 1 | U | U | Black |
| 4 | V | V | Black |
| 3 | W | W | Black |
| 2 | PE (Protective Earth) | PE | Yellow / Green |
| A | Thermal Sensor + | T+ | Black |
| B | Thermal Sensor – | T- | Black |
| C | Brake + | B+ | Black |
| D | Brake – | B- | Black |
| Shell | Shield | Shield | — |
M23 8-Pin Servo Motor Hybrid Cable Assembly – Customization Options:
Cable length and jacket material
Alternative M23 coding or pin configurations
Different conductor cross-sections
End termination: open wire, terminal, or connector
Labeling, marking, and packaging options
Engineering support is available from sample validation to mass production.
