Product Overview – 4 Pin Nano-Fit to MTA156 Power
Supply Cable Assembly

This custom power supply cable assembly is designed for low-voltage DC power distribution
applications requiring reliable current transmission between Nano-Fit and MTA156 connector
systems. The assembly uses UL1015 AWG22 wires with a dual positive and dual negative
conductor configuration to support stable 15V power delivery.

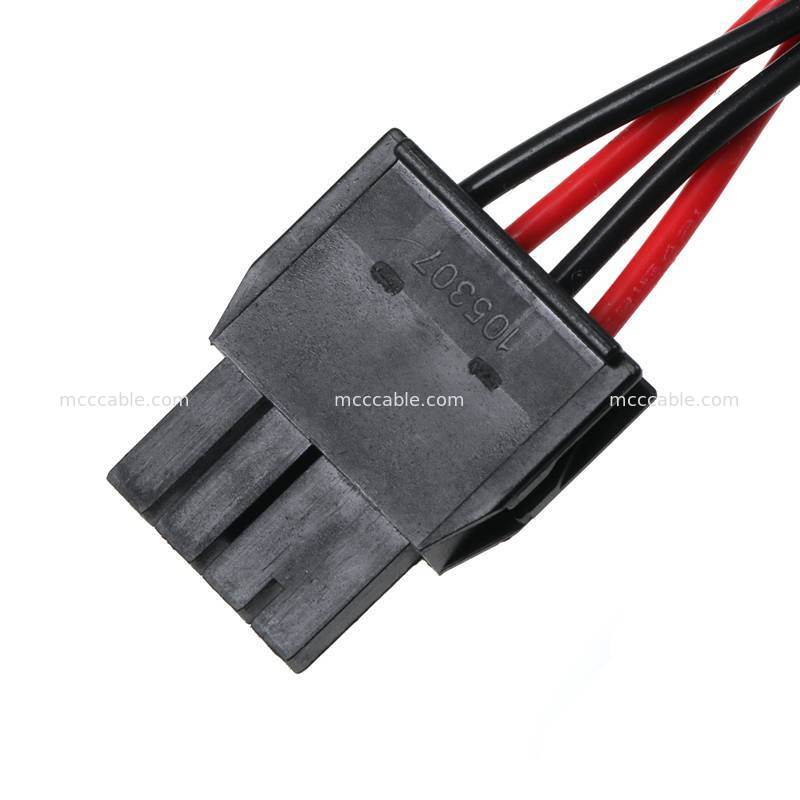

The harness integrates a 4-position Nano-Fit female connector on one end and a 4-position
MTA156 female connector on the opposite end. The cable assembly is commonly used in
industrial electronics, medical equipment, laboratory instruments, embedded systems, power
modules, and OEM equipment requiring compact connector interfaces and dependable power
transmission.

Manufactured under strict quality control procedures, the assembly provides excellent
mechanical retention, low contact resistance, and long service life.

Product Features – 4 Pin Nano-Fit to MTA156 Power
Supply Cable Assembly

Reliable 15V Power Distribution

Designed specifically for DC power supply circuits requiring stable voltage transmission and
low power loss.

Compact Nano-Fit Interface

The Nano-Fit connector provides secure locking performance while reducing installation space.

Industrial Grade Wire Construction

Built using UL1015 CSA-certified AWG22 conductors for dependable electrical performance.

Dual Positive and Dual Negative Circuit Design

Red and black wire pairs improve current handling capability and simplify installation.

OEM Customization Support

Cable length, connector orientation, wire color, labeling, and packaging can be customized.

Product Specifications – 4 Pin Nano-Fit to MTA156
Power Supply Cable Assembly

Item	Specification
Product Type	Power Cable Assembly
Connector A	Nano-Fit 4 Pin Female
Connector B	MTA156 4 Pin Female
Positions	4 Pin
Wire Gauge	AWG22
Wire Type	UL1015 / CSA
Conductor Colors	Red ×2, Black ×2
Voltage Application	15V DC
Cable Length	650 mm
Insulation Material	PVC
Connector Housing Color	Black + Red
Assembly Type	Crimped Wire Harness
Length	Custom
OEM Service	Available

Product Applications – 4 Pin Nano-Fit to MTA156
Power Supply Cable Assembly

This cable assembly is widely used in:

• Medical equipment power systems
• Physiotherapy devices
• Laboratory instruments
• Industrial control units
• Embedded electronic systems
• Test and measurement equipment
• OEM power distribution modules
• Automation control systems

Custom Manufacturing Capabilities – 4 Pin Nano-Fit
to MTA156 Power Supply Cable Assembly

Sino-conn supports complete customization services including:

• Wire gauge customization
• Cable length customization
• Pin assignment modification
• Connector replacement
• Multi-branch harness construction
• Label printing
• Overmolding
• EMI shielding
• Electrical testing
• Low MOQ production
